Inside a Diesel Generator: Uncovering Its Core Components

Inside a Diesel Generator: Uncovering Its Core Components

As an experienced mechanical engineer specialising in energy systems, I’m often asked to provide advice on purchasing and maintaining diesel generators. These rugged machines contain several complex components working in unison to convert the chemical energy in diesel fuel into usable electrical energy. In this article, I’ll walk through the critical elements of a diesel generator and explain how they operate together to keep homes, businesses, and critical infrastructure running during outages.

The Heart of the Machine: The Diesel Engine

The core of any diesel generator is the diesel engine itself. Like engines found in heavy machinery and trucks, diesel generator engines run on compression rather than spark ignition like  petrol engines. Here’s a quick rundown of the diesel engine’s operation:

  • Intake Stroke: Air is drawn into the cylinder through the open intake valve as the piston moves downward.
  • Compression Stroke: The rising piston compresses the air to high pressures and temperatures.
  • Power Stroke: Diesel fuel is injected into the cylinder, igniting due to the heat and pressure. This rapid combustion drives the piston downward, producing usable mechanical power.
  • Exhaust Stroke: Burnt gases exit the open exhaust valve as the piston moves upward again.

This four-stroke cycle repeats many times per second, creating the characteristic diesel clatter. Diesel engines are valued for their reliability, fuel efficiency, and longevity, especially when compared to petrol-powered models. Their high compression ratios and lean fuel mixtures lead to excellent thermal efficiency, maximising the electrical output possible from each gallon of diesel.

Alternator: Generating Usable Electricity

While the diesel engine provides the power to spin an alternator, the alternator itself handles the critical job of converting this rotational force into usable electricity. Consisting of stationary and rotating components surrounded by intense magnetic fields, an alternator takes advantage of Faraday’s law of induction to produce an alternating current that can be regulated for compatibility with appliances and electronics.

core of any diesel generator is the diesel engine itself

Here’s a simplified explanation of how an alternator works:

  • The diesel engine drives the rotor, rotating at high speeds inside the alternator housing.
  • This induces a changing magnetic field around wire coils in the stationary stator.
  • The alternating magnetic field generates an oscillating voltage across the stator windings.
  • Diodes in the alternator rectify the AC output into DC, which is suitable for battery charging.
  • A voltage regulator ensures steady voltage despite engine speed fluctuations.

By carefully controlling the alternator output, generator manufacturers can achieve clean and stable electrical power, ideal for sensitive equipment. Proper alternator maintenance, like bearing lubrication and brush replacement, is also critical.

Fuel System: Supplying the Lifeblood

What good is an engine without fuel? On a diesel generator, meticulous fuel filtering and precise injection are vital to efficient, low-emission operation. Here are some key components that make up the fuel system:

  • Fuel tank: Fuel storage systems store diesel fuel, sometimes with secondary containment to prevent spills. Generator sets are available with huge 1,000+ gallon tanks for runtimes over a week.
  • Fuel filter: Traps particulates and water to maintain injector health. Check filters according to manufacturer guidelines.
  • Fuel pump: Draws fuel from the tank and builds up injection pressure. Rotary and gear-type pumps are standard.
  • Fuel injectors: Meter pressurised fuel into the cylinder precisely. Modern joint rail injection provides better atomisation for cleaner combustion.
  • Fuel return line: Returns unused fuel back to the tank.

High fuel quality and proper diesel generator sizing are imperative as well. Contaminated diesel fuel can severely damage sensitive injector components. Undersized generators run overloaded for long periods, causing excessive soot buildup. Consult a sizing chart or talk to an expert when matching a generator to your electrical loads.

Cooling System: Controlling Engine Temperature

For a diesel generator to operate safely for extended runs, its waste heat must be dissipated via a dedicated cooling system similar to a vehicle radiator:

  • Closed-loop coolant flow: Coolant absorbs heat in the cylinder liners and heads before flowing into the radiator. The now-hot fluid passes through thin tubes exposed to outside air, shedding heat.
  • Radiator: Constructed of aluminium or copper for high thermal conductivity, with welded or soldered seams. They are often paired with cooling fans in smaller generators to improve airflow.
  • Water pump: Circulates coolant throughout the cooling system. Typically belt or gear-driven.
  • Thermostat: Opens at higher temperatures to allow coolant flow, regulating operating temperature.

Maintaining the generator cooling system involves checking coolant levels, testing thermostats, cleaning debris from the radiator, and replacing worn water pumps. Never mix incompatible coolant types, as this can trigger corrosion.

generator cooling system

Exhaust System: Managing Emissions and Noise

While a byproduct of the diesel combustion process, exhaust must be handled appropriately to minimise environmental impact and noise:

  • Exhaust manifold: Routes hot gases exiting the cylinders into one output stream. May integrate an exhaust brake for large generators.
  • Muffler: Use baffles and resonance chambers to reduce noise. Often, rain caps are included as well to prevent water ingress.
  • Aftertreatment: Modern Tier 4 diesel engines employ DPFs, DOC converters, SCR systems, and other advanced aftertreatment to meet emissions standards. Requires diesel exhaust fluid (DEF).

In my experience, a high-quality exhaust can last over 5,000 hours in diesel generator applications. However, I recommend inspecting the system during routine maintenance for leaks, damage, or carbon buildup. Pay special attention to gaskets and welds. Generators without proper exhaust treatment should be upgraded to reduce environmental impact.

Lubrication System: Keeping Things Running Smoothly

Like with vehicle engines, clean oil and filtration are vital to generator life and performance. Here’s an overview:

  • Oil sump/pan: Reservoir for engine oil, usually with a dipstick for convenient level checks. It should be covered entirely with quality oil per the manufacturer’s guidelines.
  • Oil pump: Draws oil from the sump and distributes it under pressure to critical components. It can be internal or external.
  • Oil filter: Spin-on canister-style filters capture fine particulates during circulation, preventing accelerated wear.
  • Oil cooler: Exchanges heat from oil to engine coolant. It helps stabilise oil temperatures in harsh environments.

I recommend a complete oil drain and filter change after the initial 50-hour break-in period, following the specified interval (around 200-500 hours). Use only cleaner-burning, low-ash oils that meet manufacturer specifications. Keep the lubrication system full and change filters regularly for thousands of hours of reliable generator operation.

Electrical Components: Control, Distribution, Monitoring

While not as exciting as the powerhouse diesel engine, a generator’s electrical subsystem plays a massive role in usability and safety:

Automatic Transfer Switch (ATS)

  • Safely transition loads between the generator and main power to prevent back feed.
  • Advanced digital ATSs enable remote monitoring, mains & generator parameter logging, and automatic testing.

Control Panel

  • Contains critical components like the voltage regulator, engine & alternator gauges, shutdowns, annunciator, and more.
  • Digital controllers govern speed, voltage, emissions systems, and safety functions precisely.
  • Acts as the operator and generator interface for starting, stopping, and adjustments.

Output Breaker

  • Protects the alternator from potentially damaging electrical overloads.
  • It also enables the isolation of the generator output for maintenance & testing.

Mastering these electrical systems takes generator operation and monitoring to the next level. Consider redundant ATS configurations and advanced digital controllers for mission-critical applications.

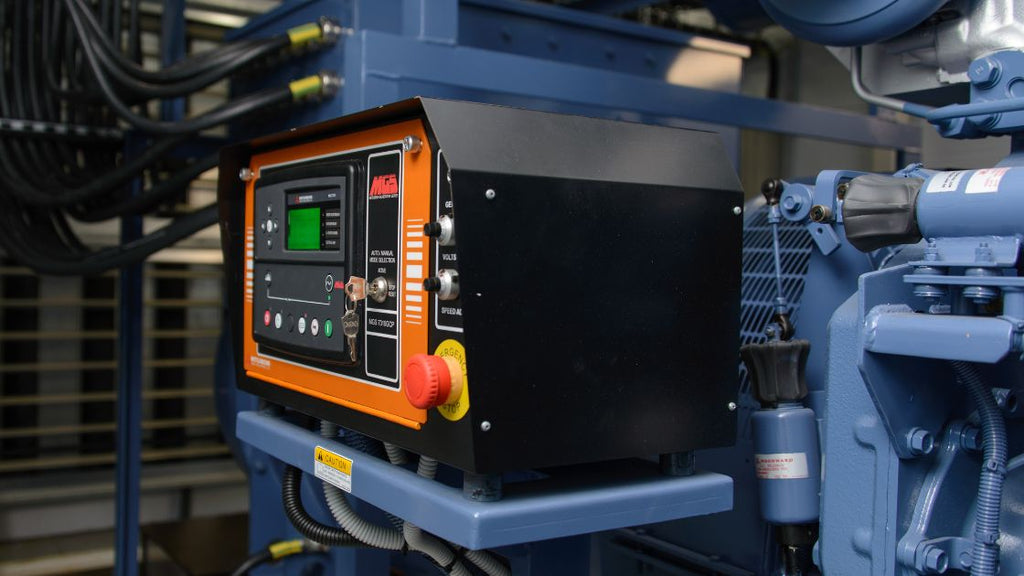

Generator Control System

Frame and Mounting: The Supporting Structure

While less technically complex than other generator components, a rigid base frame and vibration isolators are still incredibly important for resilience:


  • It provides overall structural integrity and protects components from damage.
  • Materials like powder-coated steel and aluminium offer durability with corrosion resistance.


  • Attenuate engine vibrations to prevent premature bolt loosening and reduce noise. Failures here significantly increase noise complaints and maintenance costs.
  • Encapsulated spring mounts contain vertical and horizontal oscillations exceptionally well. Pair with neoprene anti-shearing pads under smaller units.
  • Anchor mounting bolts into concrete according to manufacturer guidance for seismic & wind resilience.

Be especially careful with road handling and tiedown procedures for portable generators on trailers to avoid damaging the frame or components. Mount permanently placed units on properly engineered foundations for extreme weather resilience. Loose generator frames lead to extensive downstream issues - do it right the first time.

Enclosures: Protection from the Elements

Unprotected generators suffer significantly from exposure to rain, ocean air, frigid winters, and extreme heat. Enclosures defend against corrosion, fouling, and reduced component lifespan:

  • Open Frame: No protection - avoid available outdoor installation if possible
  • Weather Protective Enclosure: Shields components from basic precipitation but remains ventilated
  • Sound Attenuated Enclosure: Reduces noise by 5-10 decibels through critical ventilation pathways and acoustic insulation
  • Walk-In Enclosure: Allows technicians to access components easily. Popular for rental generator fleets.

I recommend weather-protective enclosures for small commercial generators in delicate climates and routine component cleaning/degreasing. Sound attenuated models work exceptionally well to mollify noise complaints from nearby businesses or homes. Just beware of fuel tank capacity reductions on enclosed generator sets.

Long-Term Maintenance Matters

I always emphasise to customers that periodic generator inspection and maintenance is mandatory for minimising operating costs over decades of service. Here are my top tips:


  • Log hours run and arrange routine inspections per the manufacturer guidelines (around 250 hours).
  • Inspect all fluids, filters, lines, belts/hoses, electrical systems, safety devices, mounting integrity, etc.
  • Diagnose and parts to arrange for any necessary repairs immediately - don’t defer maintenance!

Load Testing

  • Validate performance by loading the generator to 30%, 75%, and 100% capacity.
  • Check voltage & frequency regulation along with system functionality up to full temperature.
  • Keep detailed logs of the testing parameters and results over years of testing events.

Preventive Maintenance

  • Arrange minor repairs noted during inspections before catastrophic failures happen.
  • Stick to recommended interval fluid drains, filter changes, battery swaps, injection calibration, and major overhauls.
  • Replace aging cooling hoses, frayed belts, weathered mounts, sensors, and regulators periodically.

Staying on top of meticulous multi-point inspections, repairs, component replacements, and load testing is the best way to guarantee diesel generator reliability for decades. Don’t cut corners by skipping scheduled maintenance - it will cost far more in the long run!

Sustainable Alternatives and Practices

With climate change accelerating, companies have growing corporate responsibility commitments to improve energy sustainability. As a mechanical engineer focused on efficiency, I guide customers towards optimal generator sizing plus renewable energy integration.

Here are some excellent sustainable generator practices I recommend:

Right-Sizing Generators

  • Carefully evaluate all electrical loads to determine the optimal generator capacity. Oversizing leads to efficiency losses.
  • Discuss possibilities to shed non-critical loads with digital ATSs during outages to right-size the generator. This saves long-term fuel costs.
  • Distributed renewable sources can supplement a right-sized generator system if electrical demand grows.

Renewable Energy Integration

  • Solar, wind, and battery storage work well with properly sized diesel generators.
  • During regular operation, renewables can provide a portion of the load to save on diesel fuel usage.
  • When renewables reach maximum output, critical loads are seamlessly transferred to the generators only when necessary.

Biodiesel Fuel Blends

  • The latest Tier 4 diesel engines tolerate biodiesel blends up to B20 with no loss of performance or longevity.
  • While chemically different to diesel, biodiesel displaces a portion of fossil fuels for improved sustainability.
  • Discuss options for biodiesel sourcing and infrastructure improvements with your diesel vendor.

I’m happy to offer additional advice on improving generator efficiency, right-sizing, integrating renewable energy systems, and using biodiesel to align with critical sustainability goals. Feel free to get in touch!

Let’s Keep The Conversation Going

This overview gives you a solid understanding of the inner workings of diesel generators and the many components critical to their smooth operation. If you have any other questions about selecting, operating, or maintaining your generator system, never contact our team. After spending years in the manufacturing sector before moving to Generator Warehouse, I’ve always been eager to share industry knowledge and practical diesel generator guidance freely. My inbox is always open for technical queries or general advice!
