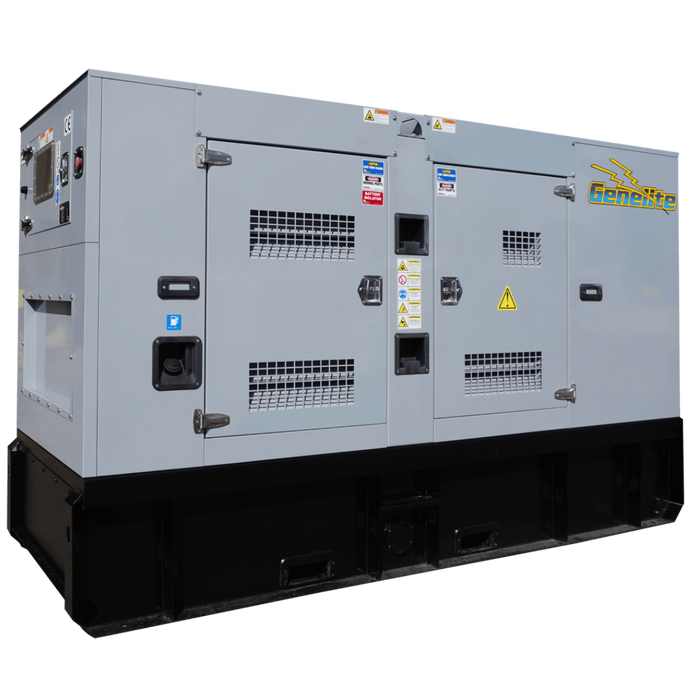

Genelite LG135C - 150kVA Cummins Powered Generator

Go To Checkout for shipping qoute !!!

POA
Request a quote

The Genelite LG135C is a robust 150kVA diesel generator built to supply reliable three phase electricity for commercial facilities, industrial sites, and standby power systems. At its core is the trusted Cummins 6BTAA5.9G2 turbo after cooled diesel engine, known for delivering dependable performance, efficient fuel usage, and long term durability in demanding environments such as construction projects, agricultural operations, manufacturing plants, and emergency backup installations.

Running at 1500RPM, the LG135C delivers 135kVA prime power and 150kVA standby power, allowing it to support both continuous operational loads and emergency power requirements. Its heavy duty design ensures stable power generation even when operating under fluctuating loads or extended working hours.

The generator is housed inside a sound attenuated canopy rated at approximately 73dBA at 7 metres, helping to control operational noise while maintaining high power output. A large 610 litre bundled fuel tank enables long operating periods, providing up to 26 hours of runtime at 75% load, which reduces the need for frequent refuelling during prolonged use.

Power is produced through a Leroy Somer TAL-A44-J brushless alternator, featuring AVR voltage regulation and Class H insulation. This setup delivers stable electrical output with less than 5% harmonic distortion, helping ensure consistent voltage supply for connected equipment and electrical systems.

Generator control and protection are handled by the DeepSea DSE6120 controller, offering clear monitoring, system protection, and operational management. Additional equipment such as a four pole circuit breaker, battery charger, and battery isolator further supports safe and dependable operation.

Installed on a heavy duty skid base with integrated fork pockets, the LG135C can be transported and positioned with ease. Combining a proven Cummins engine, quality alternator, and durable construction, the Genelite LG135C provides a dependable power solution for both prime and standby power applications.



CLICK HERE FOR BROCHURE

More assistance call us on 1800 436 372

Specification

Model: LG135C

Engine: Cummins 6BTAA5.9G2

Controller: Deep Sea 6120

Alternator: Leroy Somer TAL-A44-J

Fuel Type: Diesel

Standby Power Output: 120 kW/ 150 kVA

Prime Power Output: 108 kW/ 135 kVA

Speed: 1500 RPM

Phase/Voltage: Three 415V

Fuel Tank Capacity: 610 litres bunded

Run Time @75% load: 26 hours

Noise Level @7m: 73 dBA

Outlets: 2 x 15Amp 240V, 1 x 32Amp 415V

Dimensions: 328.8 x 113 x 215 cm

Weight: 1910 kg

Features

Cummins turbo after cooled engine - Powered by the Cummins 6BTAA5.9G2 diesel engine delivering reliable heavy duty performance.

Silenced canopy enclosure - Sound attenuated canopy producing approximately 73dBA at 7 metres.

Large bundled fuel tank - Integrated 610L tank providing around 26 hours at 75% load.

Heavy duty skid base - Robust skid frame with fork pockets for easier handling and transport.

DeepSea generator controller - DSE6120 controller provides monitoring, generator protection, and operational management.

Leroy Somer alternator - High quality brushless alternator with AVR voltage regulation and Class H insulation.

Low harmonic distortion - Less than 5% harmonic distortion helps maintain stable electrical output.

Integrated outlet configuration - Includes both single and three phase outlets for flexible power distribution.

FAQs

Q: What environments is the LG135C generator designed for?
A: The LG135C is commonly used for industrial sites, commercial facilities, construction projects, and standby power installations requiring reliable three phase electricity.

Q: What alternator is used in the LG135C generator?
A: The generator uses a Leroy Somer TAl-A44-J brushless alternator with AVR voltage regulation for stable electrical output.

Q: How long can the LG135C operate on a full tank of fuel?
A: With its 610L bundled fuel tank, the generator can run for approximately 26 hours ar 75% load.
