MAXWATT MX14000DSE 13kVA 10000W Diesel Generator

Model: MX14000DSE
Starting Power: 10000W
Rated Power: 9500W
Starting Current @ 240V: 41.6A
Rated Current @ 240V: 39.5A
Rated Voltage: 240V
Rated Frequency: 50Hz
Outlets: 2 x 15A IP66 / 1 x 32A IP66
Covered Outlets: 2-Wire Connect
Circuit Protection: PID-125-1P+N-50 ASAA RCDA
Run Time @ 50% Load: 17 hours
Run Time @ 100% Load: 8.8 hours
Noise Level: 75–85 dBA
Starting System: Electric / 2-Wire Auto Start
Voltage Regulation: Automatic Voltage Regulation
Battery: 12V 36Ah Lead Acid
Spark Plug: N/A
Engine Brand: Maxwatt
Engine Displacement: 762cc
Engine Type: 1105FGE
Engine Speed: Constant 3000 rpm
Fuel Type: Diesel
Fuel Gauge: Buoy Indicator
Fuel Tank Capacity: 30 L
Fuel Tank Material: Steel
Engine Oil Type: CF 15W-40
Engine Oil Capacity: 2.2 L
Engine Oil Included: Yes
Low Oil Shut-Off: Yes – Alarm
Wheels: Yes
Wheel Type: 2 Fixed Castors / 2 Swivel Castors
Wheel Diameter: 4 Inch & 6 Inch
Euro V Certified: No
Product Dimensions (L x W x H): 1115 x 720 x 835mm
Net Weight: 231 kg

Portable Design - Compact and practical design makes the generator easy to transport and position.

THD <5% - Provides stable power output suitable for a wide range of electrical equipment.

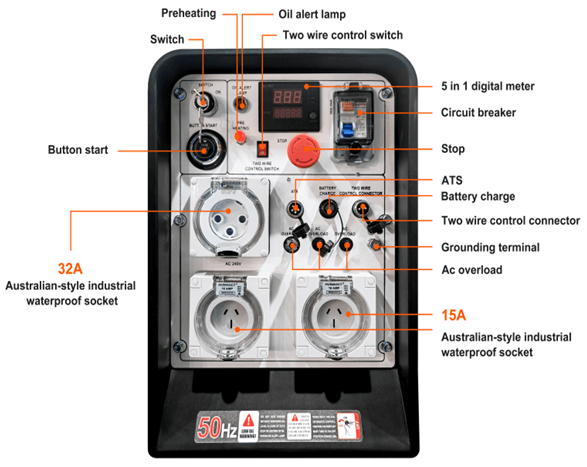

LED Data Centre - Clear LED display provides convenient monitoring of key generator operating information.

Key Electric Start - Key-operated electric start system provides quick and convenient engine starting.

2-Wire Auto Start - Automatic start function provides reliable backup power when required.

Low Noise Operation - Operates at approximately 80 dB for quieter and more comfortable performance.

Emergency Stop Button - Provides quick and convenient shutdown in emergency situations for enhanced safety.

Four-Wheel Design - Four integrated wheels make the generator easier to move and transport.

IP66-Rated Outlets - Durable IP66-rated outlets provide reliable protection against dust and water for demanding environments.

Dimensions Box

• Length: 1130 mm
• Width: 750 mm
• Height: 870 mm (Without Wheels)
• Weight: 241 kg

Dimensions Product

• Length: 1130 mm
• Width: 750 mm
• Height: 870 mm
• Weight: 231 kg
