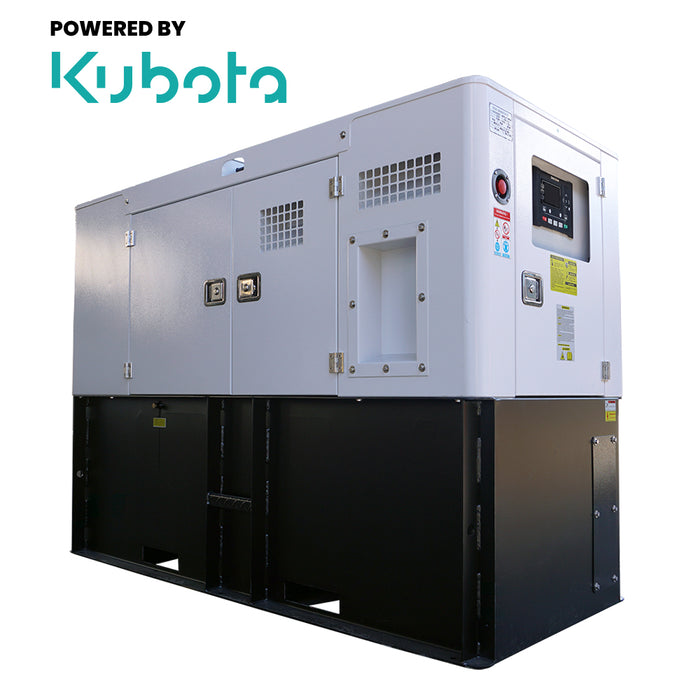

Welling & Crossley ED14.5KYE/3-400-LB 14.5kVA Kubota Powered Generator

Welling & Crossley ED14.5KYE/3-400-LB 14.5kVA Kubota Powered Generator

by Welling & Crossley

Go To Checkout for shipping qoute !!!
POA
Request a quote

ED14.5KYE/3-400-LB is equipped with three-phase Crossley alternator, delivering a standby active rating of 14.5kVA at 0.8 power factor and an output power of 11.6kW at 415V and 50Hz. Powering the system is a Kubota D1703-E2BGG diesel engine, running at 1500rpm with three cylinders. Engine performance is supported by a radiator-cooled system with 48m³/min cooling air flow and 1.3 m³/min combustion air intake, while handling 12.8kW heat rejection. Fuel by diesel, the unit features a 400L fuel tank, enabling extended operation with fuel consumption of 4.0L/hr in continuous use and 4.4L/hr in standby mode.

Click Here For Brochure

Specification

Model: ED14.5KYE/3-400-LB

Engine: D1703-E2BG

Active Rating: 14.5 kVA at 0.8 pf (Standby)

Power Alternator: 11.6 kW

Fuel Type: Diesel

Fuel Tank Capacity: 400L

Dimensions: 200 x 90 x 158 Cm

Weight: 1180Kg
